Overview
Super Yacht line
Armare Ropes can boast an extraordinary experience in the Super Yacht sector, gained through years of research and development of specific products for use on boats and sailing yachts, where every line is subjected to extraordinarily high workloads.
Armare technicians are available to riggers, captains and owners to provide advice for the development of the most demanding projects.
Super Yacht line
Sailing Super Yacht, running rigging, mooring, captive winch ropes
The Super Yacht line focuses on the use of the two bers in Dyneema® SK99 and SK78, both enhanced by HPS + PU treatments. To these cores can be added 6 special high performance covers.
A special mention goes to the exclusive “Captive” treatment, introduced by Armare Ropes, specically developed to improve the performance of the ropes used on Captive winches.
Super Yacht line
- > Single braid
- > Double braid (Core + Cover)
The rope can be composed by choosing both the core and the cover from the various options available on the configurator.
SY Line
Single braid
Single braid
- Dyneforce® 99Dyneema® SK99 + HPS + PU
- Dyneforce® 78Dyneema® SK78 + HPS + PU
Single braid
Double braid
Cores
- Dyneema® SK99HPS + PU
- Dyneema® SK78HPS + PU
Covers
- Black Technora® / Dyneema®PBO / DYN
- Black Technora® / Dyneema® / PoliestereBTEC / DYN / PET
- Black Technora® / PoliestereBTEC / PET
- Kevlar®/ Dyneema® / PoliestereKEV / DYN / PET
- Cordura® / PoliestereCRD / PET
- PoliesterePET
Double braid
Single braids
Super Yacht line
Dyneforce® 99 (Dyneema® SK99 + HPS + PU)
12 plait with Dyneema® SK99 impregnated with polyurethane coating and special heat treatment HPS. Ideal for tackles, backstays, runners, baby stays, halyards on hydraulic cylinders, strops and loops; moreover for bindings where high breaking load, low elongation and minimal amount of space are required.
Dyneforce® 78 (Dyneema® SK78 + HPS + PU)
12 plait with Dyneema® SK78 impregnated with polyurethane coating and special heat treatment HPS. Ideal for tackles, backstays, runners, baby stays, control lines, strops and loops; moreover for lashings where a good breaking load and a low elongation are required.
Cores
Super Yacht Line
Dyneema® SK99 + HPS + PU
Dyneema® SK99 delivers the highest tenacity available in a light weight polymer fiber. Indeed, compared to Dyneema® SK78, it shows a 20% increase on tenacity and a 35% higher modulus. Dyneema® SK99 appears thinner and lighter weight respect to ropes with the same diameter, but with a significant increase in strength, which entails an increase on performance and a better response of the boat. Other features: low water absorption, high UV resistance, minimal elongation and good flexibility.
Dyneema® SK78 + HPS + PU
The High Modulus fiber Dyneema® SK78, characterized by a remarkable stability under constant loads, provides the following features: low creep, elevated breaking load, low elongation, light weight, low level of water absorption, high resistance to UV rays and abrasion, great flexibility, high resistance to cutting. The ropes made with Dyneema® SK78 + HPS + PU are therefore destined to extreme performances, especially during highly demanding regattas when the permanent load is continuously present.
Special treatments
Different special treatments may be applied to the braided cores and to the technical fibers to enhance their characteristics in terms of elongation, creep and resistance, and to obtain even better performance.
Covers
Super Yacht Line

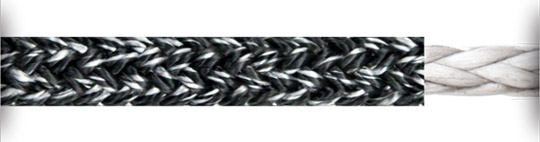

Black Technora® / Dyneema®
The mixture of these fibres has been carefully studied to be fairly distributed in order to make them take advantage of their mutual characteristics, both in terms of durability and performance. Excellent results in order of smoothness, abrasion resistance and durability have been reached.
USO: Ideal for high fatigue manoeuvres and repeated mechanical stress, in particular where the wear of the cover is steadily present e.g. jib sheets, tacklines and staysail sheets.

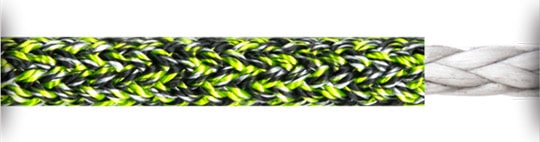

Black Technora® / Dyneema® / Poliestere
This item is suitable for many different boats and uses because of its excellent resistance to abrasion and to repeated bending. Compared to TEC/DYN covers, it is easer to customize thanks to the presence of Polyester and it even becomes more recognizable in the distinction of the different manoeuvres
USE: It’s simple to control and to release on winches. Ideal for jib and gennaker sheets, halyard and control lines.

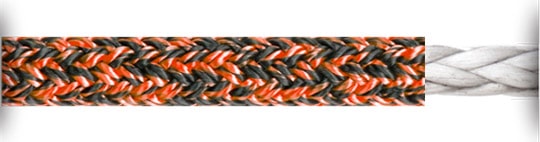

Black Technora® / Poliestere
It combines high level functional characteristics, with UV and abrasion resistance as well as a good grip. Thanks to the mixture among the Black Technora® and the different Polyester colours, the look is also winning
USE: This rope is used on monotypes, oceanic boats and on Super Yachts as sheets and halyards with a good grip and high chafe resistance.

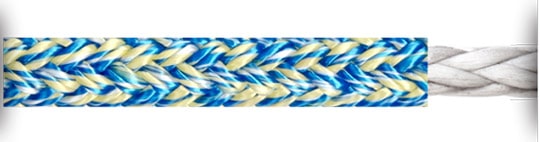

Kevlar®/ Dyneema® / Poliestere
It preserves similar characteristics as its sister-cover BTEC/ DYN/PET, but thanks to the high point of fusion of Kevlar® it is more suitable for high speed manoeuvres and load, where the ropes reach high temperatures. It holds one of the best grips but a lower UV resistance in comparison to Black Technora®, which is composed by special pigments that protract his life, despite of exposure to UV rays.
USE: Ideal for manoeuvres of high fatigue and cyclical mechanical stress e.g. jib sheets, tacklines and staysail sheets.

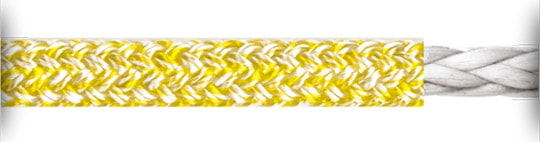

Cordura® / Poliestere
This rope stands out for its lightness and perfect grip. It has been studied to obtain an excellent grip on stoppers and winches through the use of special anti-slip fibers.
USE: Excellent grip on stopper and winch. It can be chosen either as halyard, as sheet and for all control lines thanks to its soft and grip touch.

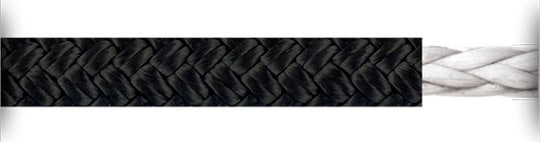

Poliestere
It is the most used fiber on different types of boats thanks to its good resistance to UV rays and to abrasion and for its excellent durability to atmospheric agents. Moreover, it is easy to customize and ideal to diversify the different manoeuvres.
USE: Indicated for multiple uses: sheets, halyards and general running rigging.
SPECIAL TREATMENT

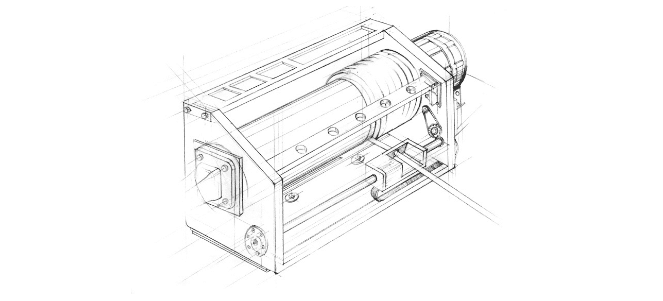

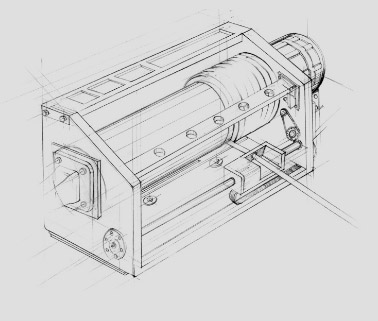

“Captive” range
Exclusive treatment for Captive Winch ropes
Thanks to the cooperation with leader companies in the production of Captive Winch and the supply to prestigious Super Yachts, Armare has improved and reached high performance levels also in this range of products.
Captive Winch products preserve high breaking loads and low elongation thanks to the use of high modulus fibres.
Moreover, they hold the essential characteristics necessary to grant the good working of a Captive Winch System like flexibility, a steady shape, no sliding between core and cover, high abrasion resistance and excellent behaviour between sliding and grip on drums.
The “Captive” ropes can be configured by coupling one of the six covers available to the core in Dyneema® SK99 + HPS + PU
Rope with Captive treatment
linear and compact; core and cover perfectly fit together
Rope without treatment
could show a progressive “slack” that accumulates gradually and may cause damage to the cover.
Super Yacht line
Ropes available in double braid construction (complete rope: core + cover), specically developed for use on Captive Winches.
Compose the rope by combining a core with a protective cover of your choice among the various available.
SY Line
Double braid
Cores
- Dyneema® SK78 + HPS + PU + CAPTDYN / HPS + PU + Captive
Covers
- Black Technora® / Dyneema®BTEC / DYN + Captive
- Black Technora® / Dyneema®/ PoliestereBTEC / DYN / PET + Captive
- Black Technora® / PoliestereBTEC / PET + Captive
- Cordura® / PoliestereCRD / PET + Captive
- PoliesterePET + Captive
Double braid
Cores
Super Yacht line + Captive treatment
Dyneema® SK78 + HPS + PU + CAPTIVE
The High Modulus fiber Dyneema® SK78, characterized by a remarkable stability under constant loads, provides the following features: low creep, elevated breaking load, low elongation, light weight, low level of water absorption, high resistance to UV rays and abrasion, great flexibility, high resistance to cutting. The ropes made with Dyneema® SK78 + HPS + PU are therefore destined to extreme performances, especially during highly demanding regattas when the permanent load is continuously present.
Covers
Super Yacht line + Captive treatment
Black Technora® / Dyneema®
The mixture of these fibres has been carefully studied to be fairly distributed in order to make them take advantage of their mutual characteristics, both in terms of durability and performance. Excellent results in order of smoothness, abrasion resistance and durability have been reached.
USO: Ideal for high fatigue manoeuvres and repeated mechanical stress, in particular where the wear of the cover is steadily present e.g. jib sheets, tacklines and staysail sheets.
Black Technora® / Dyneema® / Poliestere
This item is suitable for many different boats and uses because of its excellent resistance to abrasion and to repeated bending. Compared to TEC/DYN covers, it is easer to customize thanks to the presence of Polyester and it even becomes more recognizable in the distinction of the different manoeuvres
USE: It’s simple to control and to release on winches. Ideal for jib and gennaker sheets, halyard and control lines.
Black Technora® / Poliestere
It combines high level functional characteristics, with UV and abrasion resistance as well as a good grip. Thanks to the mixture among the Black Technora® and the different Polyester colours, the look is also winning
USE: This rope is used on monotypes, oceanic boats and on Super Yachts as sheets and halyards with a good grip and high chafe resistance.
Kevlar®/ Dyneema® / Poliestere
It preserves similar characteristics as its sister-cover BTEC/ DYN/PET, but thanks to the high point of fusion of Kevlar® it is more suitable for high speed manoeuvres and load, where the ropes reach high temperatures. It holds one of the best grips but a lower UV resistance in comparison to Black Technora®, which is composed by special pigments that protract his life, despite of exposure to UV rays.
USE: Ideal for manoeuvres of high fatigue and cyclical mechanical stress e.g. jib sheets, tacklines and staysail sheets.
Cordura® / Poliestere
This rope stands out for its lightness and perfect grip. It has been studied to obtain an excellent grip on stoppers and winches through the use of special anti-slip fibers.
USE: Excellent grip on stopper and winch. It can be chosen either as halyard, as sheet and for all control lines thanks to its soft and grip touch.
Poliestere
It is the most used fiber on different types of boats thanks to its good resistance to UV rays and to abrasion and for its excellent durability to atmospheric agents. Moreover, it is easy to customize and ideal to diversify the different manoeuvres.
USE: Indicated for multiple uses: sheets, halyards and general running rigging.
